Discreet.
DESIGNED for small SPACEs.

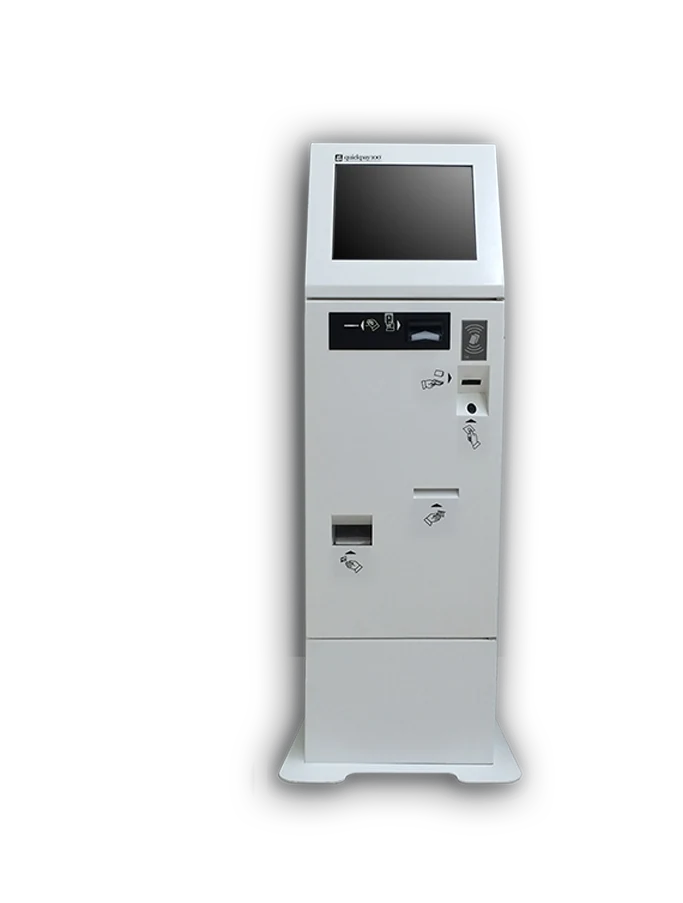

The Quickpay100 ATM was designed taking into account the space constraints of retail businesses. Due to its small size it can be installed in any sales floor or counter.
Receives bills and coins. Dispenses change with its coins recycling system of up to five denominations.
Process payments with VISA, MasterCard, CARNET and AMEX credit cards (Optional). The machine is PCI PTS 3.x certified.
It has an electronic lock to control access to securities.
datasheetselection guide
The Quickpay100 ATM is designed to work in markets where it is required to receive bills and coins in all denominations. It has the ability to recycle coins to dispense change up to five denominations, however it does not give change with billnotes. This equipment is ideal for customers who need to perform frequent operations and their sales tickets are of low amounts. If required, it can be equipped with a credit card terminal to process charges with credit and debit cards.
markets
COINs RECYCLER
- Recycles up to 5 denominations.
- Stores up to 2,000 coins.
- Rejects False Coins.
- Accepts coins of $ 0.5, $ 1, $ 2, $ 5, $ 10
bill validator
- Stores up to 1,000 notes.
- Rejects counterfeit notes.
- Accepts all denominations.
credit cards
Ingenico anti-vandal equipment with smart cards chip reader, PCI PTS 3.0 and EMV Levels 1 and 2 certified. Process credit and debit cards
MasterCard, VISA, CARNET, AMEX (Optional).
coins hopper
- 1 Hopper.
- Capacity of up to 700 coins.
- One denomination. Configurable by software.
PERIPHERALS
- 80mm Ticket Thermal Printer.
- 15" ELO TouchScreen Monitor.
- 1D, 2D, PDF and QR code reader.
- Biometric Fingerprint Reader.
seguridad
- Electronic lock.
- High Security Manual Locks.
power
- Operating Voltage: AC120V - 60HZ
- Voltage Regulator with No Break.
- Additional Battery for Electronic Lock.
industrial computer
- Operative System: Windows 10 Pro.
- Fanless.
- Processor: Intel N2940 - 4 cores, 4GB RAM, 128GB SSD.
